Description
Process introduction:
This UV faux embroidery technology adopts UV DTF powder-free transfer layered stacking process. Multiple layers of UV white ink are stacked to build raised 3D texture, matched with CMYK color layer and embossed varnish top layer to simulate the stitch and thread touch of traditional embroidery. UV LED lamp instantly cures each ink layer, forming a hot melt adhesive layer. After heat pressing transfer on textiles, it achieves highly realistic embroidery look and tactile feeling without stitching, plate making or thread breakage issues.
- Bright colors, exquisite patterns, delicate picture quality, 3D effect
- High stretchability, high color fastness, washing fastness up to level 4
- No hollowing, no waste discharge, green and environmentally friendly

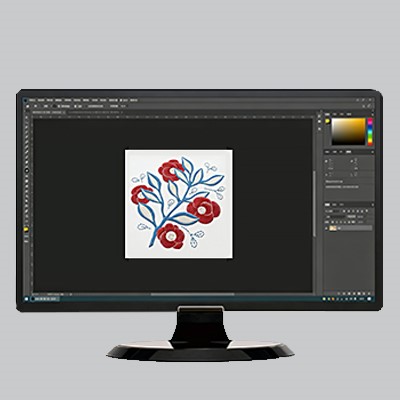

Firstly
Finish designing the graphics on your computer.

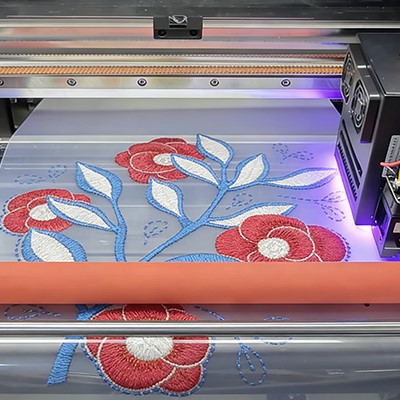

Secondly
Use a UV Embroidery Effect Printer to print out the pattern.

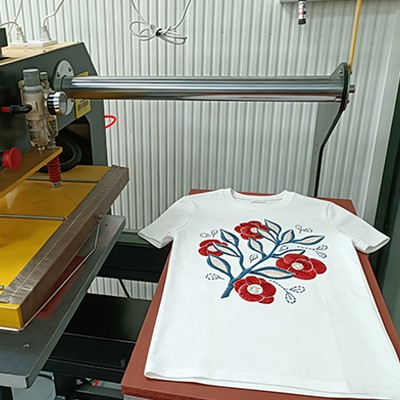

Thirdly
Put the patterns and clothing on the heat pressing machine and press them.
Forthly
Peel off the film to view the 3D faux embroidery heat transfer effect.
Process advantage:
- No engraving
More convenient and faster, saving time and labor
Simple operation, efficient and stable
- No minimum order quantity
One or batch production
Zero inventory, sell 1 and produce 1
Pattern customization
Printing pattern freelColorful
Accurate color, small color difference
Japan THK silent
linear guide rail
Low operating noise and durable guide rails
Leadshine
Motor
Accurate stepping and accurate printing.
Automatic lamination
Comes with laminating function, no need to purchase additional lamination machine.
Aviation aluminum
Integrated Base and Beam
Material accuracy error is only ±0.02mm
Printer parameters:
| Name | 3 Heads UV Embroidery Effect Printer |
| Equipment Model | KY-H603UV |
| Print head | Epson i3200-A1 * 3pcs; Espson i1600-A1 * 3pcs |
| Printing Width | 60cm |
| Media | Special PET Film for UV DTF |
| RIP Software | Maintop，RIIN，Photoprint（Optional） |
| Temperature | 15-30℃ |
| Humidity | 40-70% |
| Power | 1800W |
| Size of Machine | L1750mm*W790mm*H1600mm |
| Size of Package | L2300mm*W900mm*H730mm |
| Net Weight | 200KG |
| Gross Weight | 245KG |
