Description
Process introduction:
The UV 3D Silicone Heat Transfer Printer features a digital 3D heat transfer printing technology specially developed for textiles. Different from ordinary rigid cold-transfer crystal labels, it adopts a combined consumable system consisting of flexible silicone UV soft ink, multi-layer stacked embossed varnish and garment-specific hot-melt adhesive base film. Supported by layer-by-layer instant LED-UV curing technology, it creates raised silicone embossed patterns on transfer films. The finished stickers must be heat-pressed at high temperature via a heat press machine to firmly adhere to all kinds of garment fabrics.
- Bright colors, exquisite patterns, delicate picture quality, 3D effect
- High stretchability, high color fastness, washing fastness up to level 4
- No hollowing, no waste discharge, green and environmentally friendly
Firstly

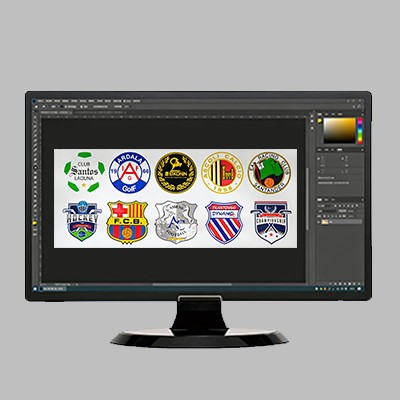

Finish designing the graphics on your computer.
Secondly

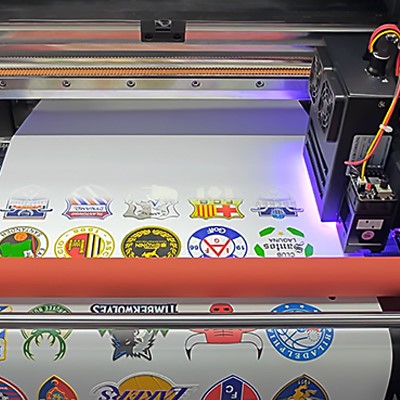

Use a UV 3D Silicone Printer to print out the pattern.
Thirdly

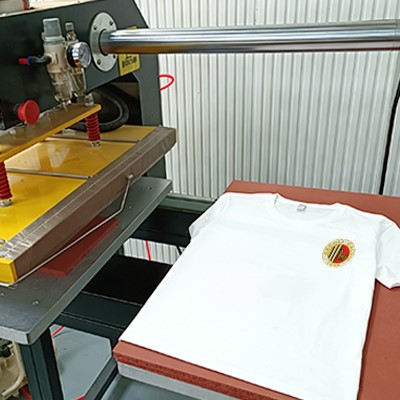

Put the patterns and clothing on the heat pressing machine and press them.
Forthly
Peel off the film to view the 3D Silicone heat transfer effect.
Process advantage:
- No engraving
More convenient and faster, saving time and labor
Simple operation, efficient and stable
- No minimum order quantity
One or batch production
Zero inventory, sell 1 and produce 1
Pattern customization
Printing pattern freelColorful
Accurate color, small color difference
Japan THK silent
linear guide rail
Low operating noise and durable guide rails
Leadshine
Motor
Accurate stepping and accurate printing.

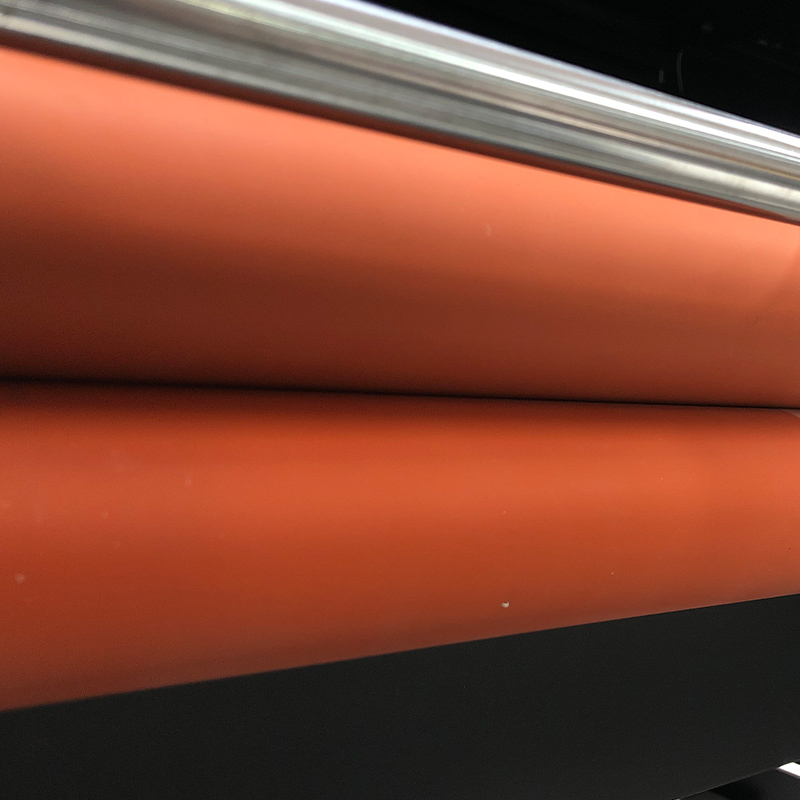

Automatic lamination
Comes with laminating function, no need to purchase additional lamination machine.
Aviation aluminum
Integrated Base and Beam
Material accuracy error is only ±0.02mm
Printer parameters:

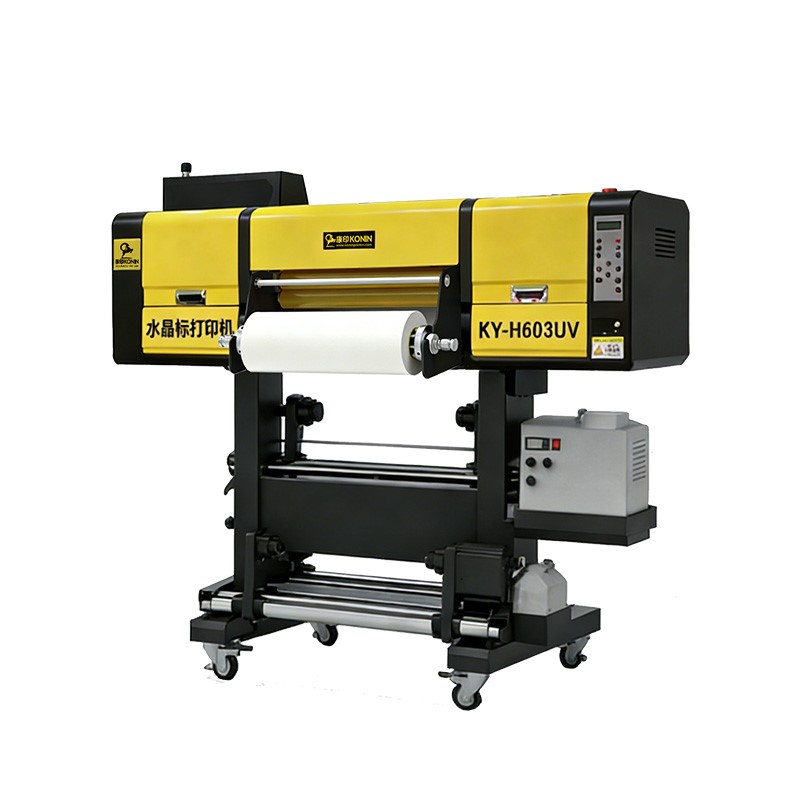

| Name | 3 Heads UV 3D Silicone Printer |
| Equipment Model | KY-H603UV |
| Print head | Epson i3200-A1 * 3pcs; Espson i1600-A1 * 3pcs |
| Printing Width | 60cm |
| Media | Special PET Film for UV DTF |
| RIP Software | Maintop，RIIN，Photoprint（Optional） |
| Temperature | 15-30℃ |
| Humidity | 40-70% |
| Power | 1800W |
| Size of Machine | L1750mm*W790mm*H1600mm |
| Size of Package | L2300mm*W900mm*H730mm |
| Net Weight | 200KG |
| Gross Weight | 245KG |
