Description
Process introduction:
The working principle of UV DTF Printer is to print the pattern on the UV DTF A film, which is with glue on it. And the UV DTF B film laminates on the pattern through UV DTF Printer’s laminating function. At last, you can stick the UV DTF sticker on the hard object.
It is widely used for various industries, because of all the patterns can be printed, such as the LOGO. So, now UV DTF Printing is so popular in the advertising industries.
Firstly
Use a UV DTF Printer to print out
the pattern.
Secondly
Cut the UV DTF sticker after printing.
Thirdly
Stick it on the hard object.
Forthly
Tear off the B film, and the pattern is on the object tightly.
Process advantage:
- No engraving
More convenient and faster, saving time and labor
Simple operation, efficient and stable
- Widely using
Customization of LOGO or pattern for advertising
Eco-friendly
Pattern customization
Printing pattern freelColorful
Accurate color, small color difference
Japan THK silent
linear guide rail
Low operating noise and durable guide rails
Leadshine
Motor
Accurate stepping and accurate printing.
Automatic lamination
Comes with laminating function, no need to purchase additional lamination machine.
Aviation aluminum
Integrated Base and Beam
Material accuracy error is only ±0.02mm
Printer parameters:
| Name | 3 Heads UV DTF Printer |
| Equipment Model | KY-H603UV |
| Print head | Epson i3200-A1 * 3pcs; Espson i1600-A1 * 3pcs |
| Printing Width | 60cm |
| Media | Special PET Film for UV DTF |
| RIP Software | Maintop，RIIN，Photoprint（Optional） |
| Temperature | 15-30℃ |
| Humidity | 40-70% |
| Power | 1800W |
| Size of Machine | L1750mm*W790mm*H1600mm |
| Size of Package | L2300mm*W900mm*H730mm |
| Net Weight | 200KG |
| Gross Weight | 245KG |
Printer parameters:

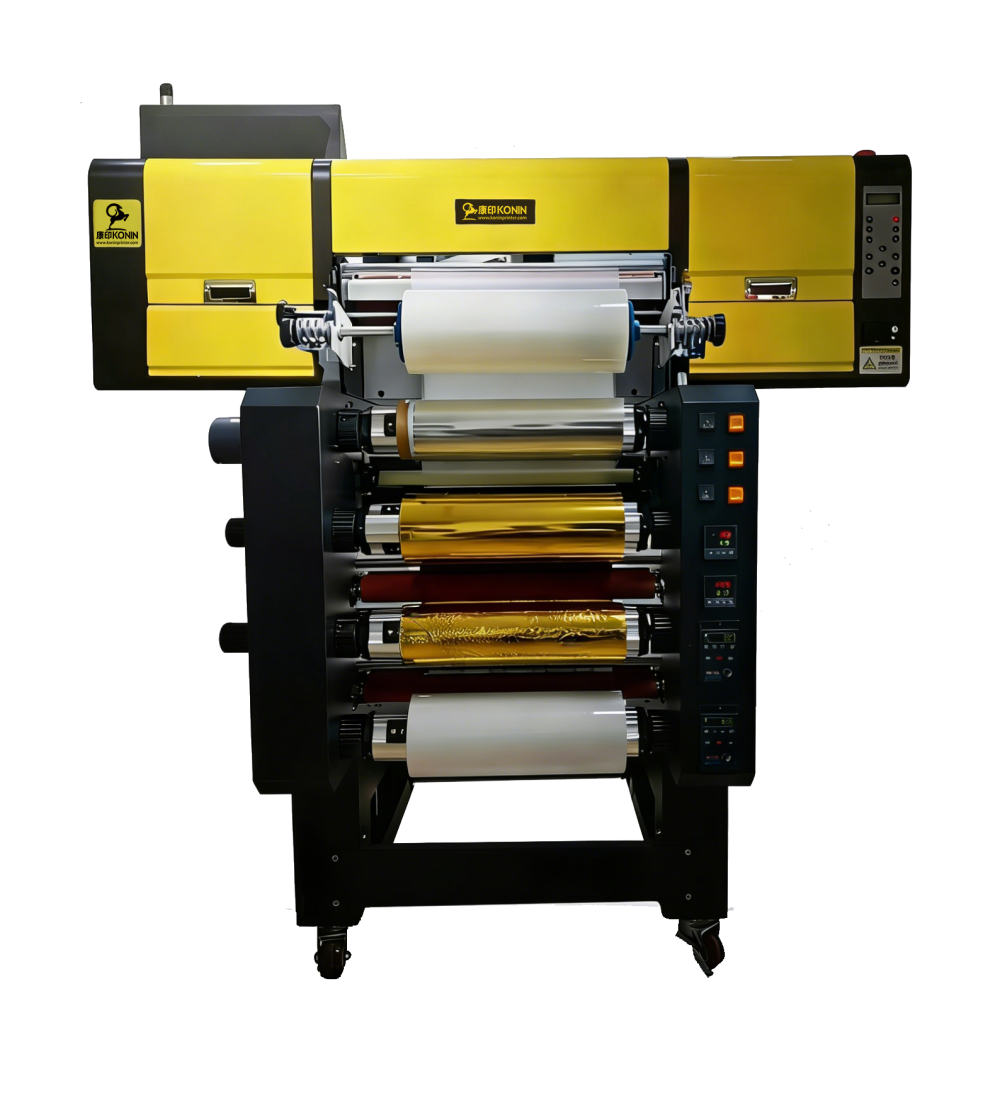

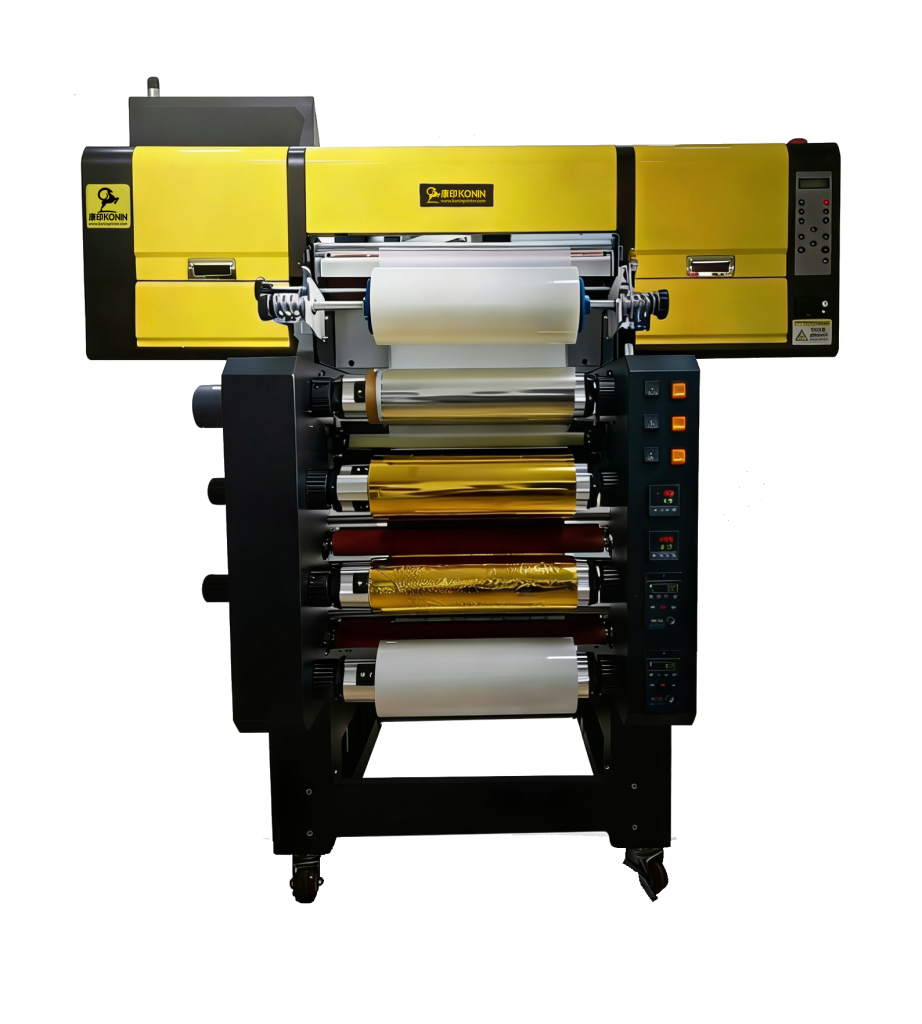

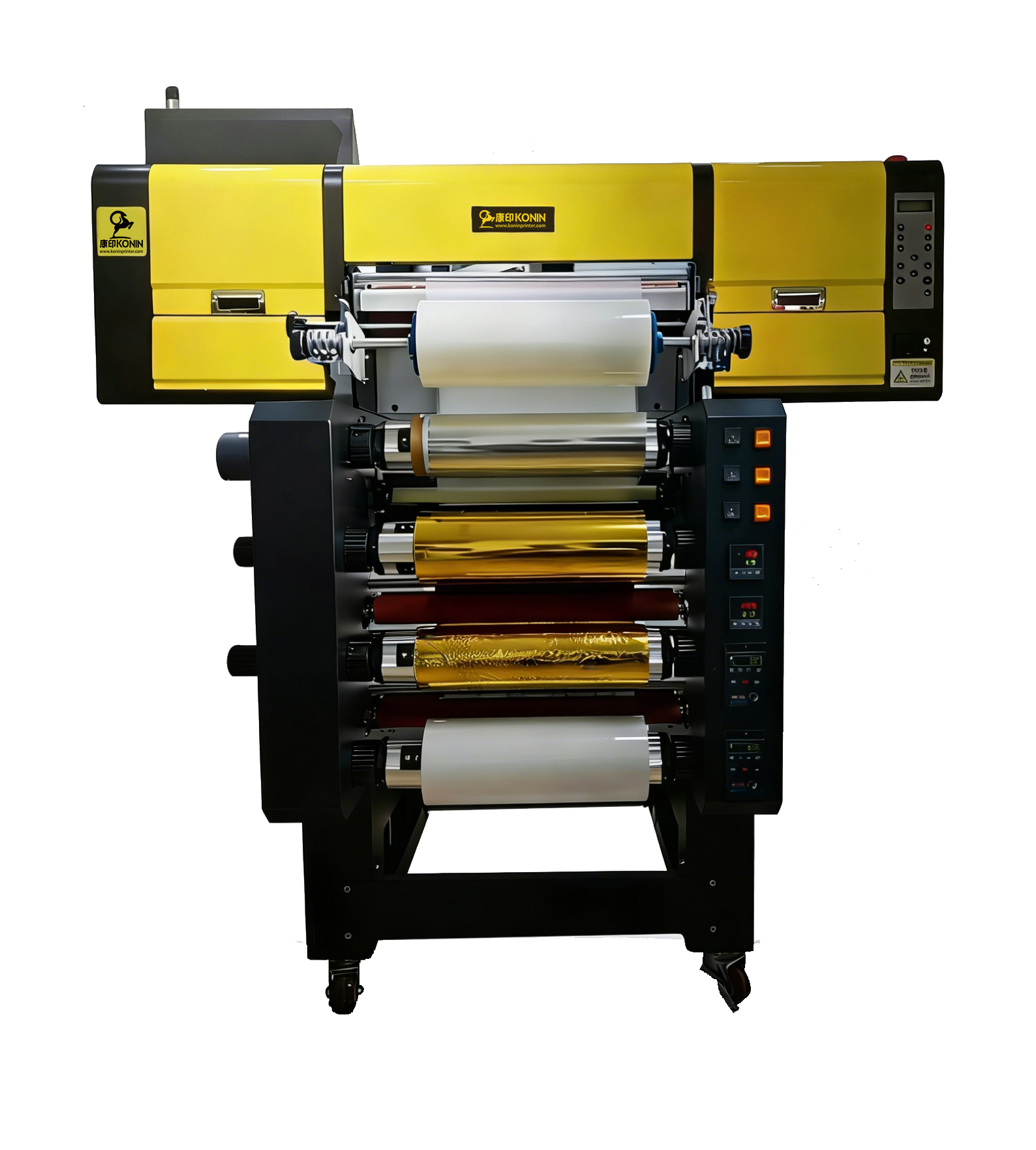

| Name | 3 Heads UV DTF Hot Gold Silver Foil Printer |
| Equipment Model | KY-H303UV |
| Print head | Epson XP600-A1 * 3pcs |
| Printing Width | 30cm |
| Media | Special PET Film for UV DTF |
| RIP Software | Maintop，RIIN，Photoprint（Optional） |
| Temperature | 15-30℃ |
| Humidity | 40-70% |
| Power | 1800W |
| Size of Machine | L985mm*W970mm*H1370mm |
| Size of Package | L1080mm*W1070mm*H1470mm |
| Net Weight | 104KG |
| Gross Weight | 130KG |
