Description
Sublimation Printing process
Process introduction:
The working principle of Sublimation Printer is to print the pattern on the sublimation paper, dry it with the high temperature, and then transfer the pattern onto various fabrics with Roll-to-Roll sublimation machine.
- Bright colors, exquisite patterns, delicate picture quality, 3D effect
- High stretchability, high color fastness, washing fastness up to level 4
- No hollowing, no waste discharge, green and environmentally friendly
Firstly
Use a DTF Printer to print out the pattern.
Secondly
After the powder shaker is applied, shaken, and dried to solidify
Thirdly
Put the patterns and clothing on the heat pressing machine and press them.
Forthly
Tear off the DTF film, and showing the heat transfer effect.
Process advantages:
- No engraving
More convenient and faster, saving time and labor
Simple operation, efficient and stable
- Printing Speed fast
Suitable for large quantities of producing demands
Pattern customization
Printing pattern freelColorful
Accurate color, small color difference
Machine Display
Japan THK silent
linear guide rail
Low operating noise and durable guide rails
Leadshine
Motor
Accurate stepping and accurate printing.
Imported rubber
Large Pressure Wheel
Stabilizing the film when printing
Aviation aluminum
Integrated Base and Beam
Material accuracy error is only ±0.02mm
Machine Display
| GRADE | PRINTER MODEL | SHAKER MODEL | RECOMMENDED INDEX |
| Premium | KY-H604 | KY-T6041 | ★★★★★ |
| Standard | KY-H604 | KY-T604 | ★★★★☆ |
Machine parameters:

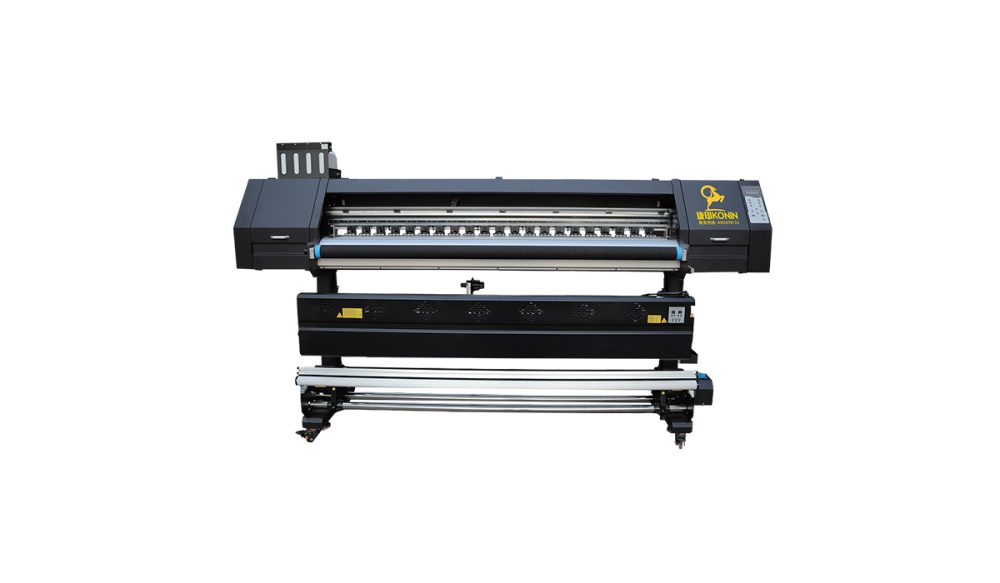

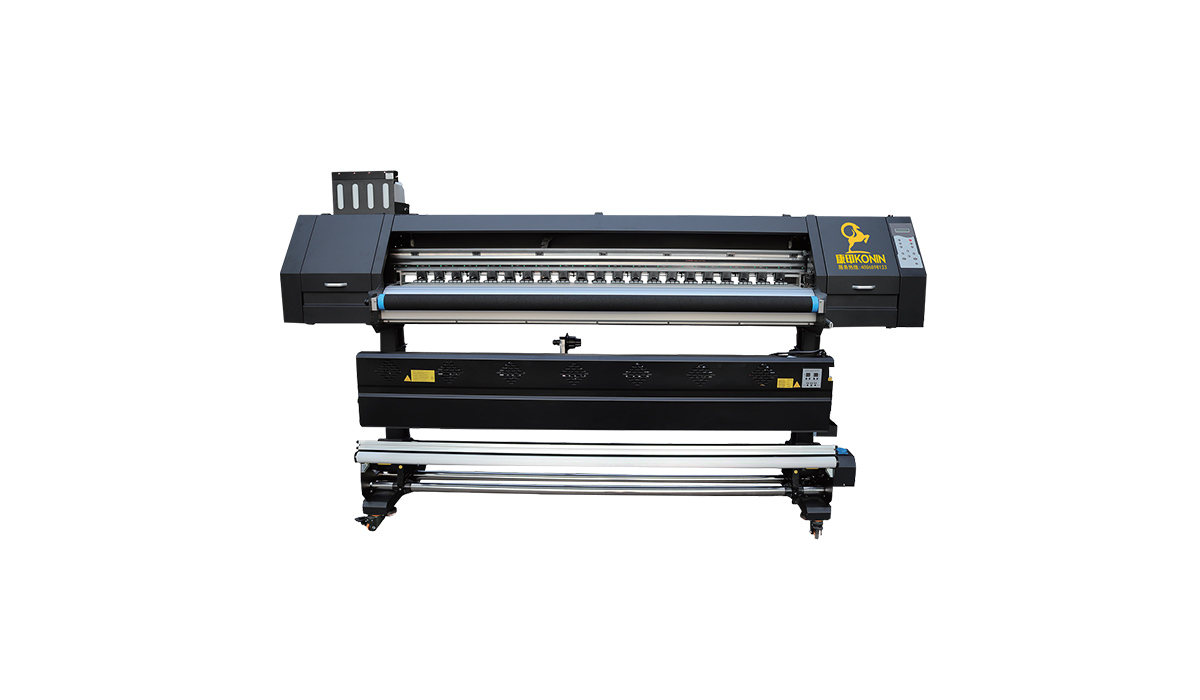

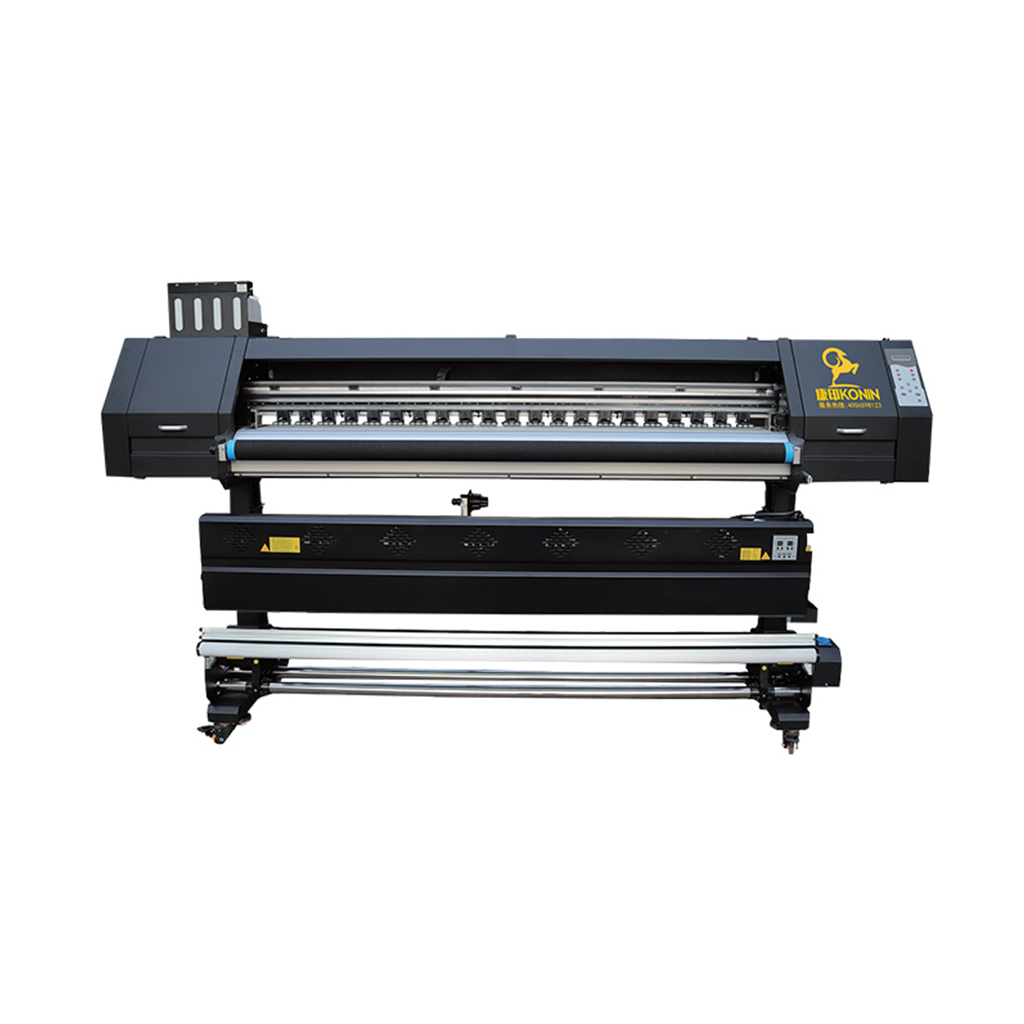

| Name | Sublimation Printer |
| Equipment Model | HY-H1904 |
| Print head | Epson i3200-A1 * 4pcs |
| Printing Width | 1.9m |
| Printing Speed | 160㎡/h(4pass); 90㎡/h(6pass) |
| Media Type | Sublimation transfer paper |
| Heating system | Auto constant temperature drying system |
| RIP Software | Maintop, RIIN, PhotoPrint(Optional) |
| Temperature | 20-30℃ |
| Humidity | 45%-65% |
| Printer Power | 230W |
| Drying Power | 2400W |
Machine parameters:
| Name | Heat Pressing Machine |
| Station | Two |
| Pressing Way | Automatic |
| Pumping Way | Oil Pump |
| Station Size | 40cm*60cm *2 |
