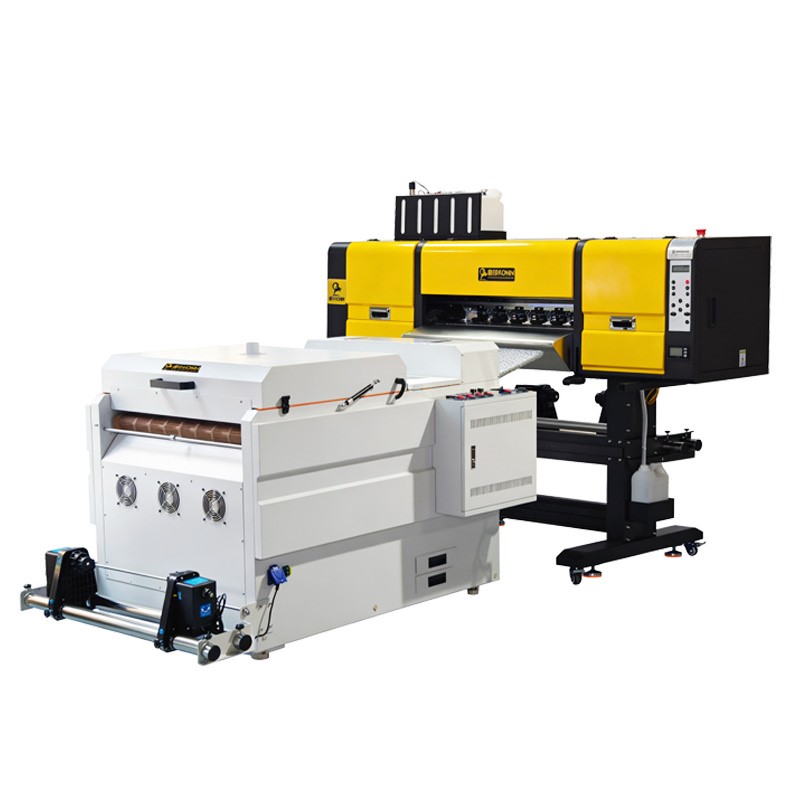

DTF Printer & DTF Powder Shaker Machine Set
DTF Printer & DTF Powder Shaker Machine Set - Image 2
DTF Printer & DTF Powder Shaker Machine Set - Image 3
DTF Printer & DTF Powder Shaker Machine Set - Image 4
DTF Printer & DTF Powder Shaker Machine Set - Image 5
DTF Printer & DTF Powder Shaker Machine Set - Image 6

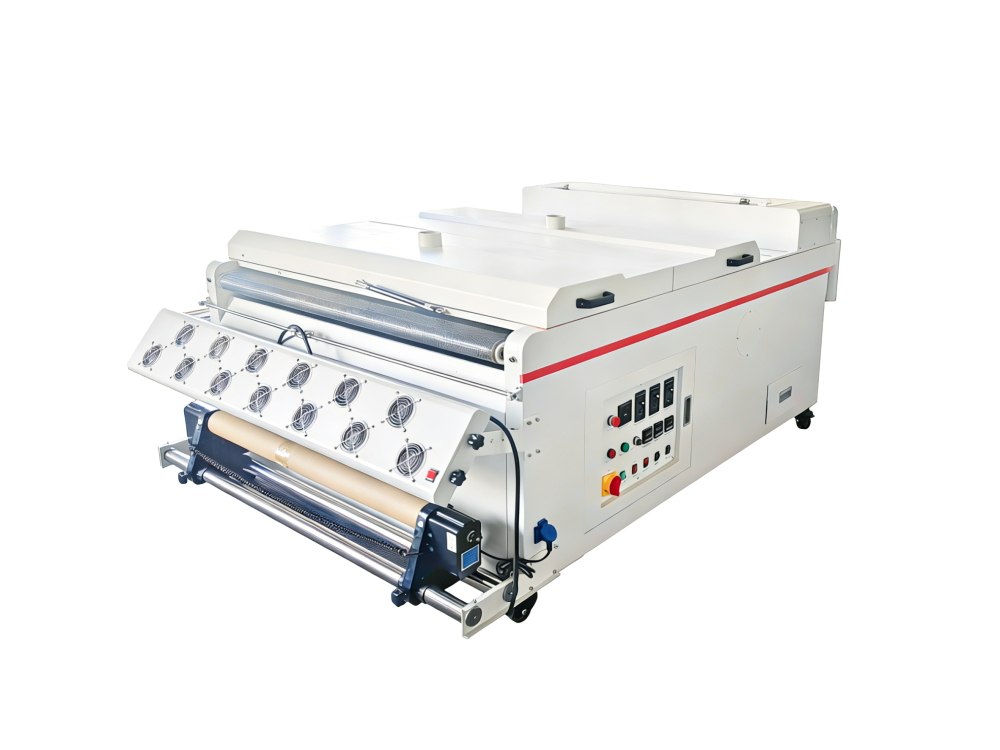

DTF Printer & DTF Powder Shaker Machine Set - Image 7

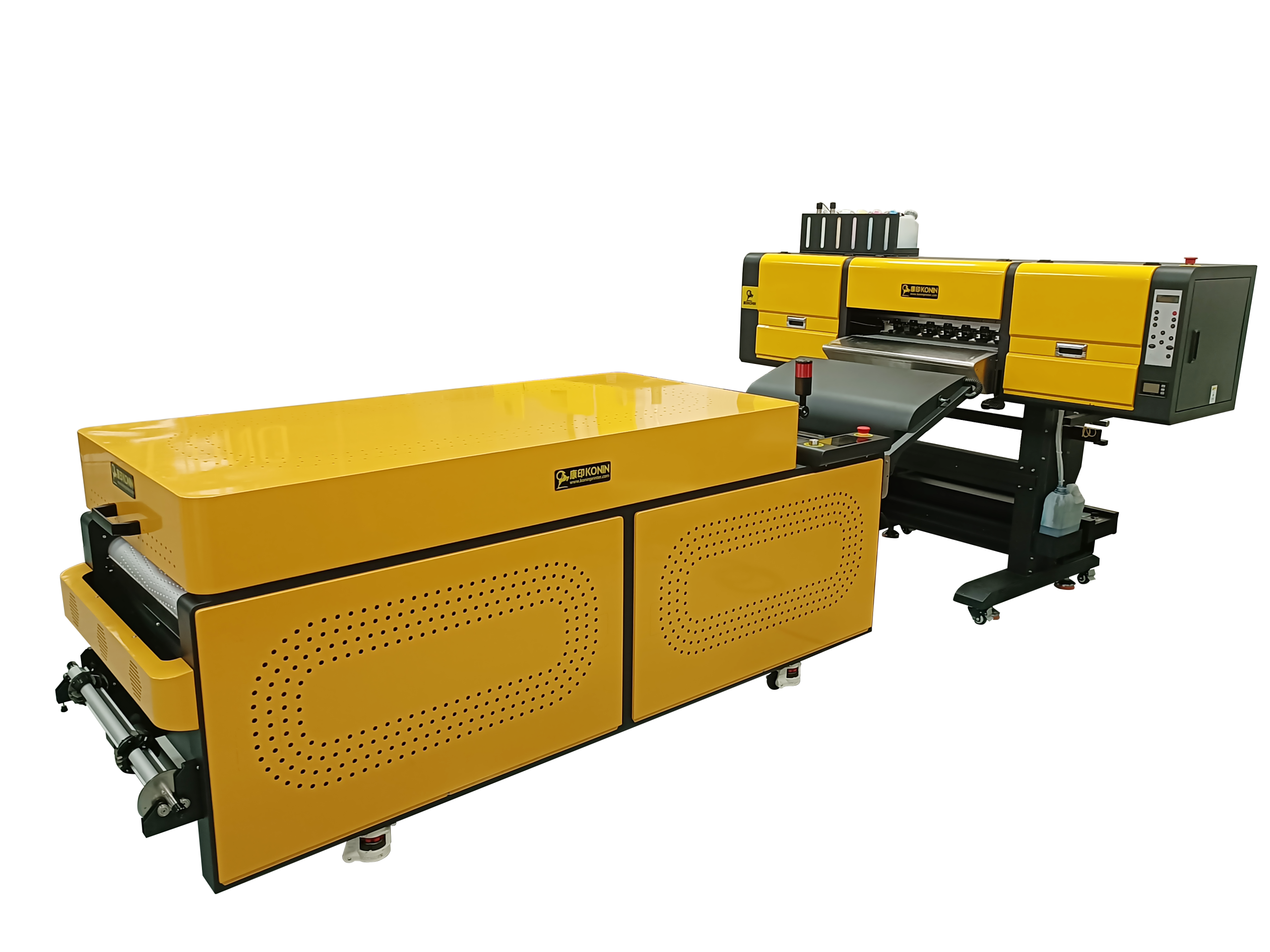

DTF Printer & DTF Powder Shaker Machine Set

Printer & Shaker Set：

  •  KY-H602 + KY-T602
  •  KY-H604 + KY-T604
  •  KY-H605+ KY-T605
  •  KY-H606+ KY-T606
  •  KY-H608+ KY-T608
  •  KY-H602S All-in-One

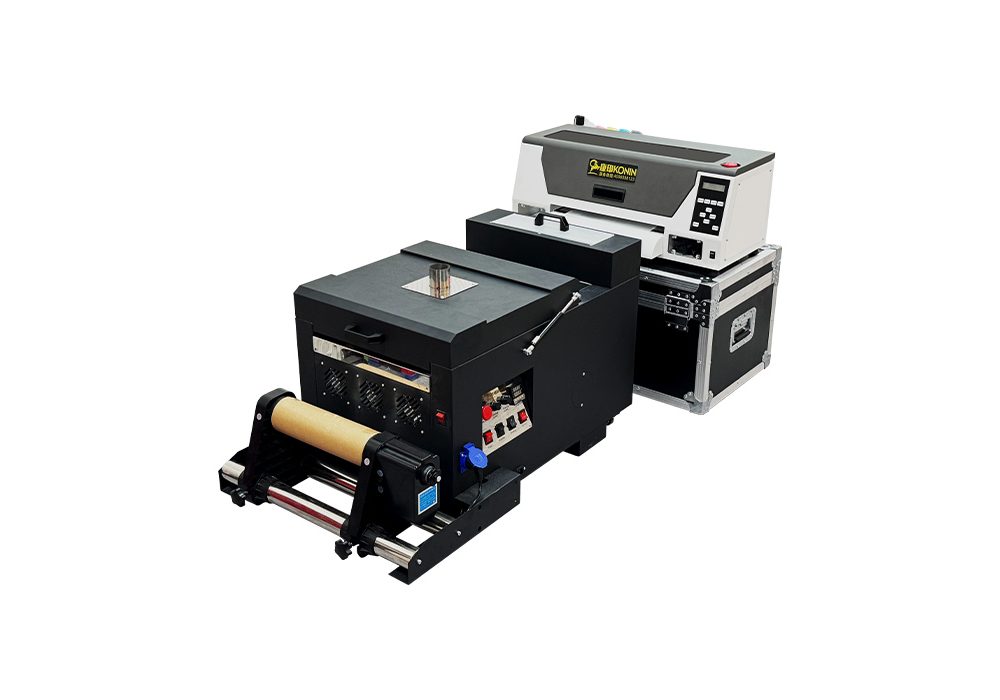

  •  KY-H301 + KY-A302
  •  KY-H302 + KY-A302
  •  KY-H1204 + KY-T1204
  •  KY-H1205 + KY-T1205
  •  KY-H1206 + KY-T1205
  • ……



● Stable printing whole days and more practical with Epson print head and other accessories.
● Suitable for various fabrics. And easy for one person to operate.
● With the white ink circulation system.
● OEM and customized color appearance is supported.

About Printer：

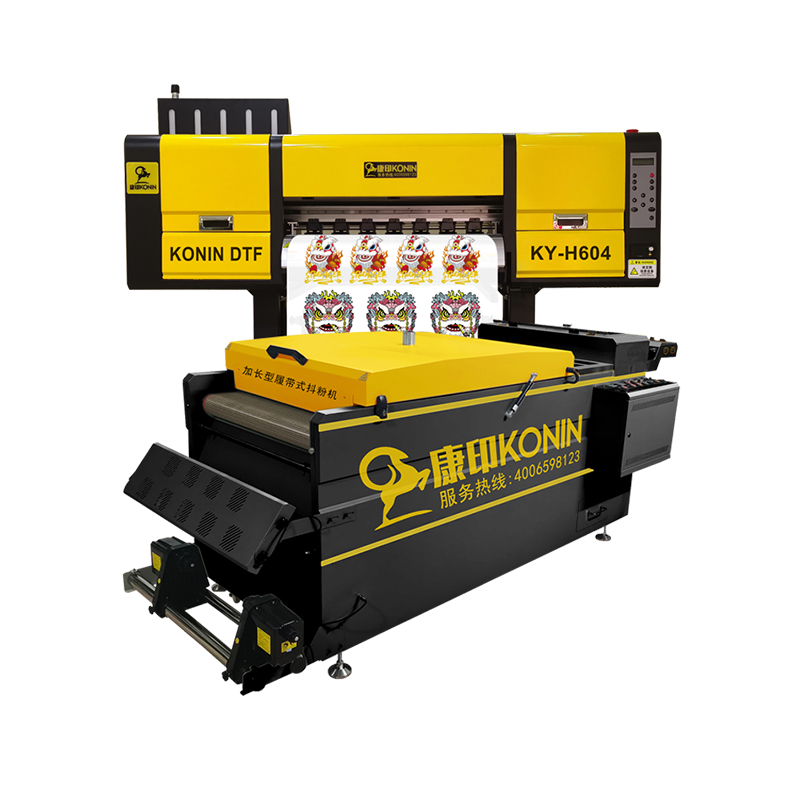

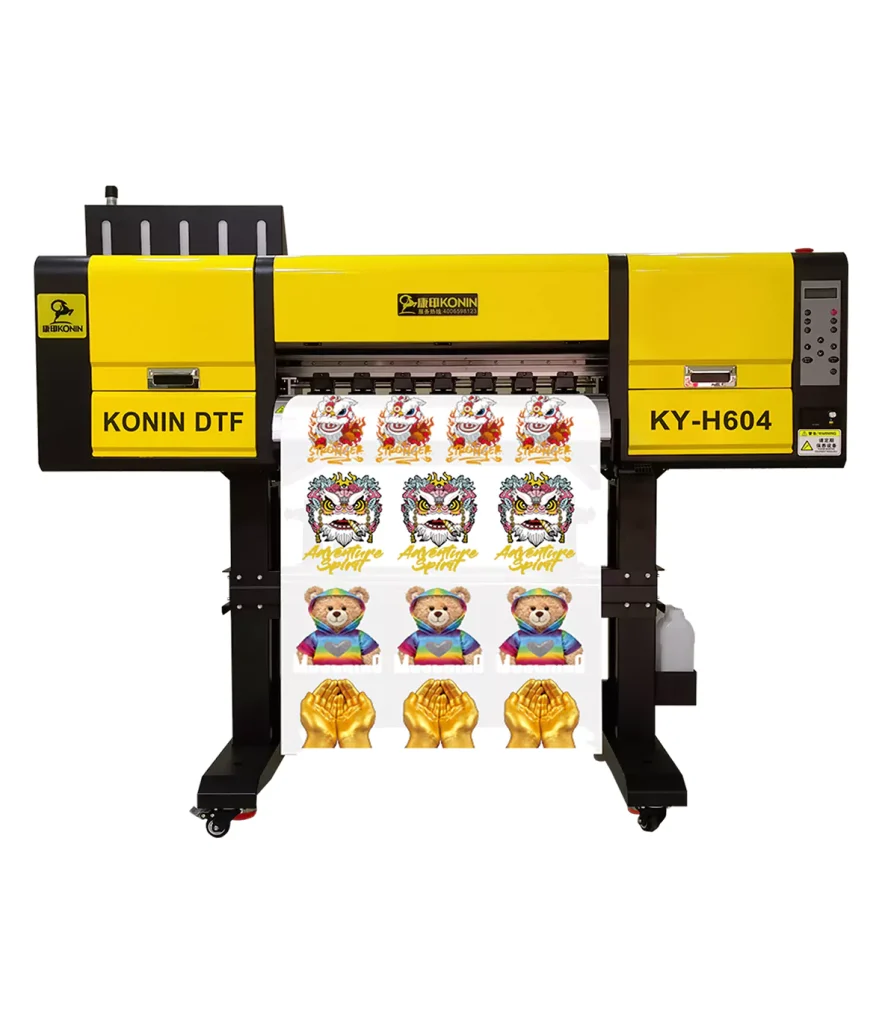

  • Model: KY-H604
  • Print Head: Epson i3200-A1 * 4pcs
  • Print Speed: 25㎡/h(4pass); 16㎡/h(6pass)
  • Print Size: 60cm
  • Ink: CMYK+W
  • Printer Color: Black and Yellow(Default) ; White; Black …

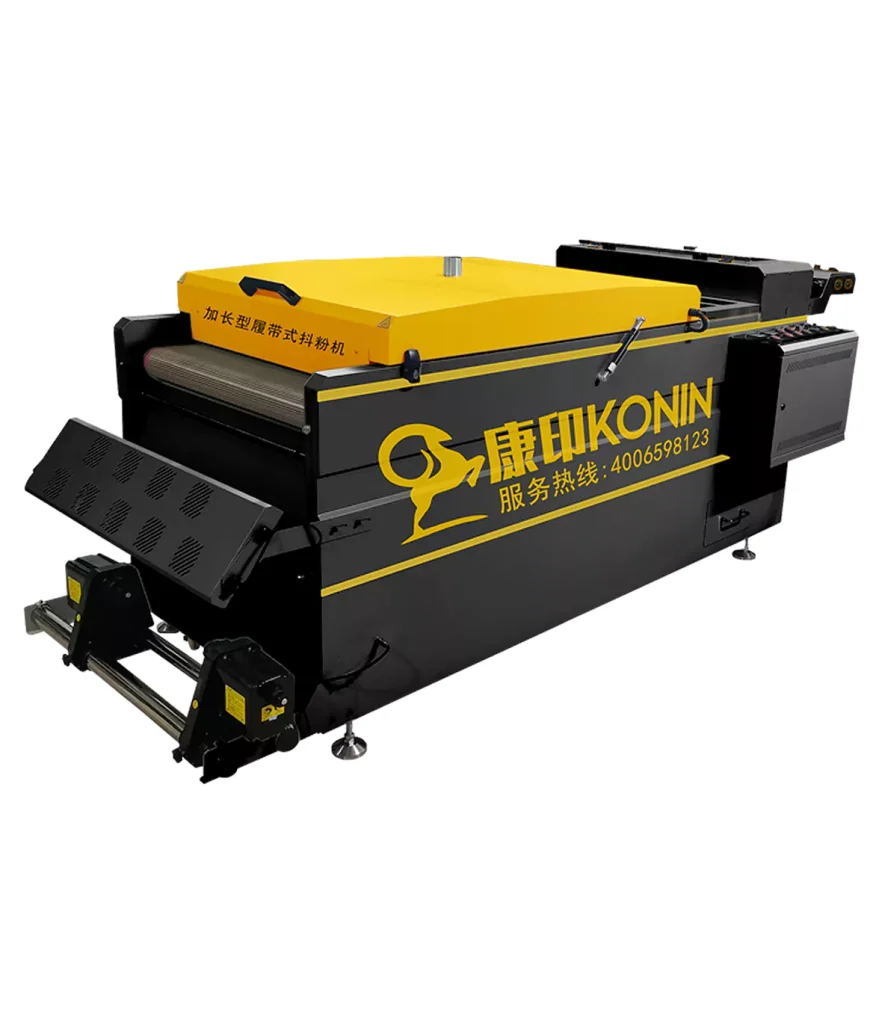

About Shaker：

  • Model: KY-T604
  • Applicable Model: KY-H604
  • Shaker Color: Black and Yellow(Default) ; White; Black …
  • Transfer: 6 lights heating by track and roller
Category
Contact Us

Description

DTF Printing process

Process introduction:

The working principle of DTF Printer is to print the pattern on the DTF film, dry it with a powder shaker, and then press it with heat pressing machine to transfer the pattern on the film to various fabrics.
An all-in-one DTF printer prints on the film, printing ink, and DTF powder, and it only takes 5 minutes to produce a piece of clothes!

  • Bright colors, exquisite patterns, delicate picture quality, 3D effect
  • High stretchability, high color fastness, washing fastness up to level 4
  • No hollowing, no waste discharge, green and environmentally friendly

Firstly

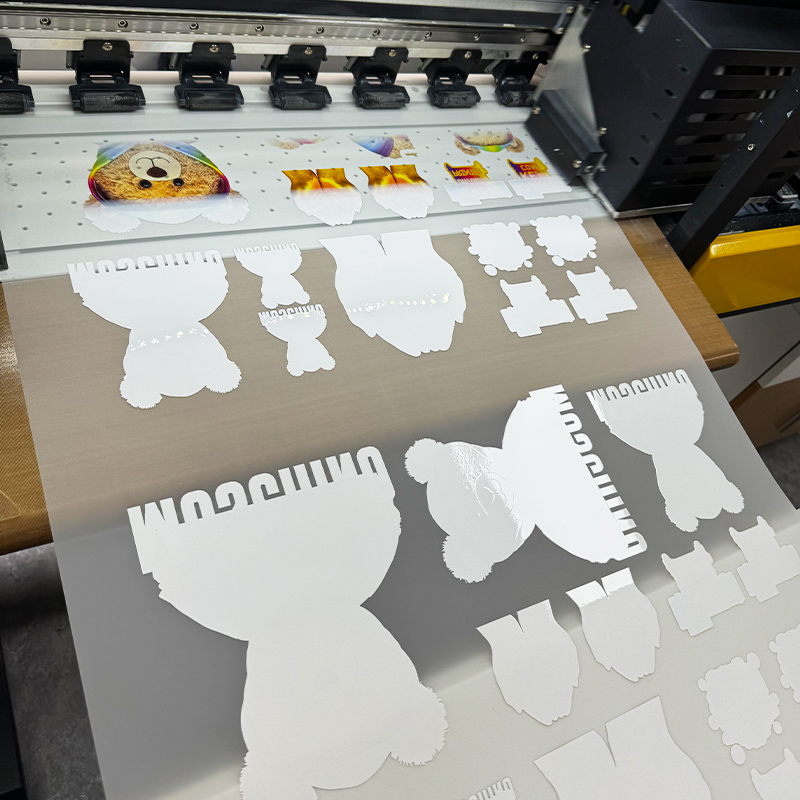

Use a DTF Printer to print out the pattern.

Secondly

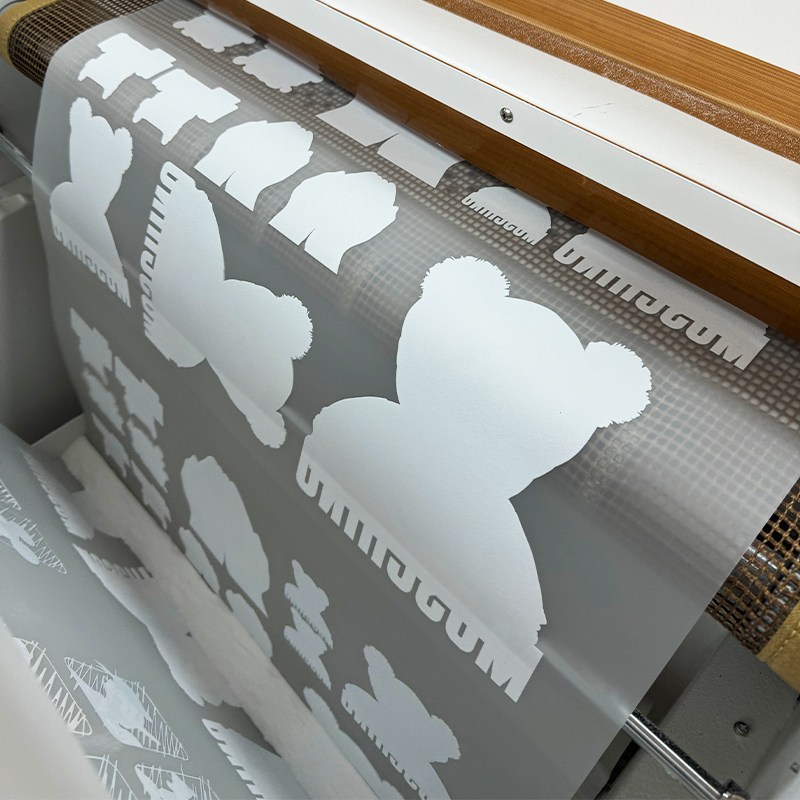

After the powder shaker is applied, shaken, and dried to solidify

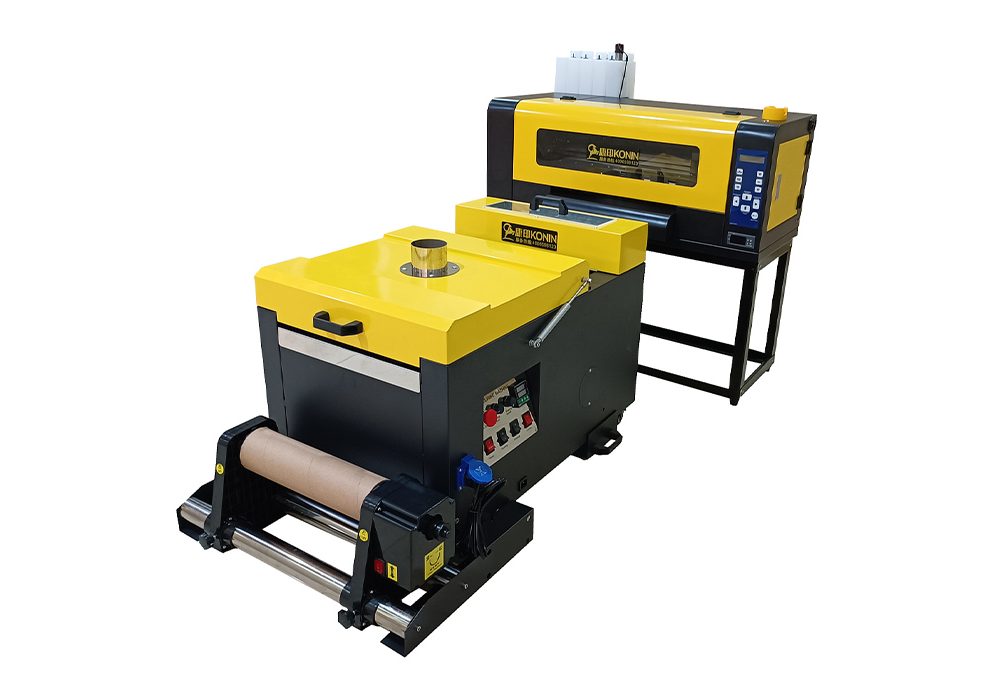

DTF Printing Machine

Thirdly

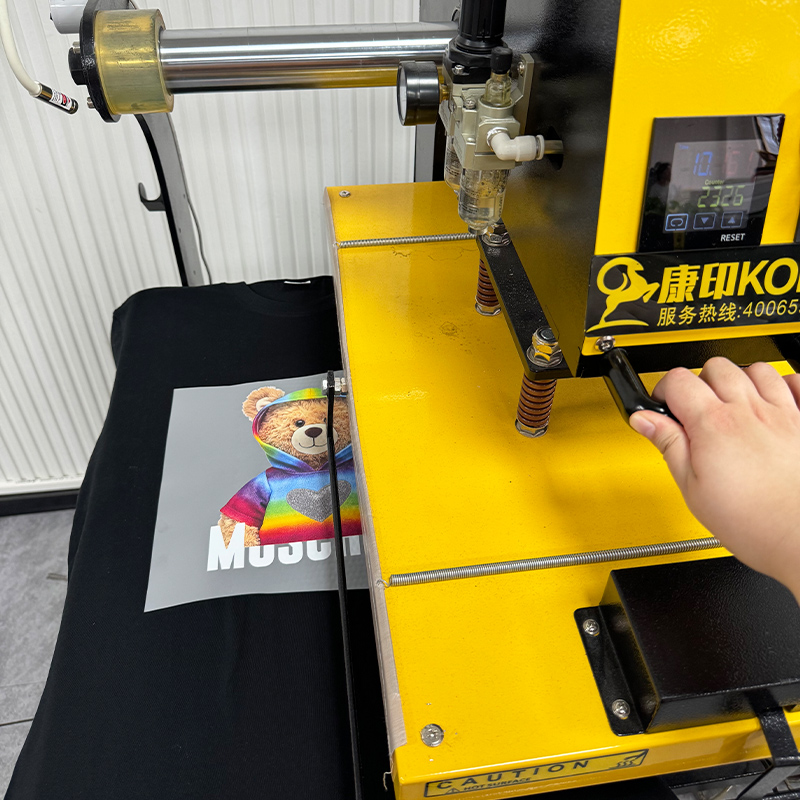

Put the patterns and clothing on the heat pressing machine and press them.

Forthly

Peel off the DTF film, and you can see the heat transfer effect.

Process advantages:

  • No engraving
    More convenient and faster, saving time and labor
    Simple operation, efficient and stable

  • No minimum order quantity
    One or batch production
    Zero inventory, sell 1 and produce 1

  • Pattern customization
    Printing pattern freel

  • Colorful
    Accurate color, small color difference

Effect Display
Wide Application Scenarios
Product Features

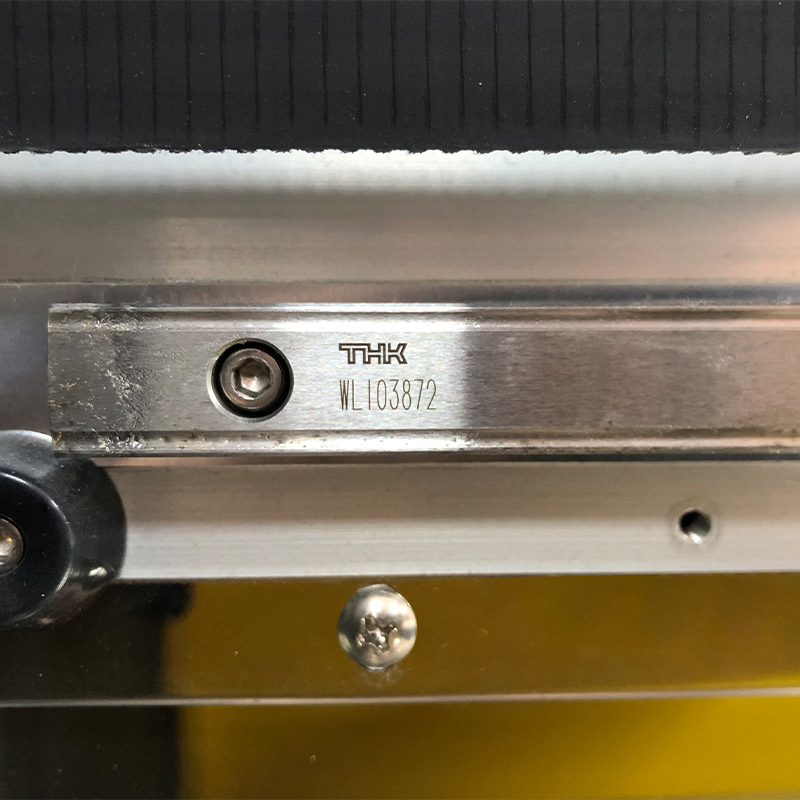

Japan THK silent
linear guide rail

Low operating noise and durable guide rails

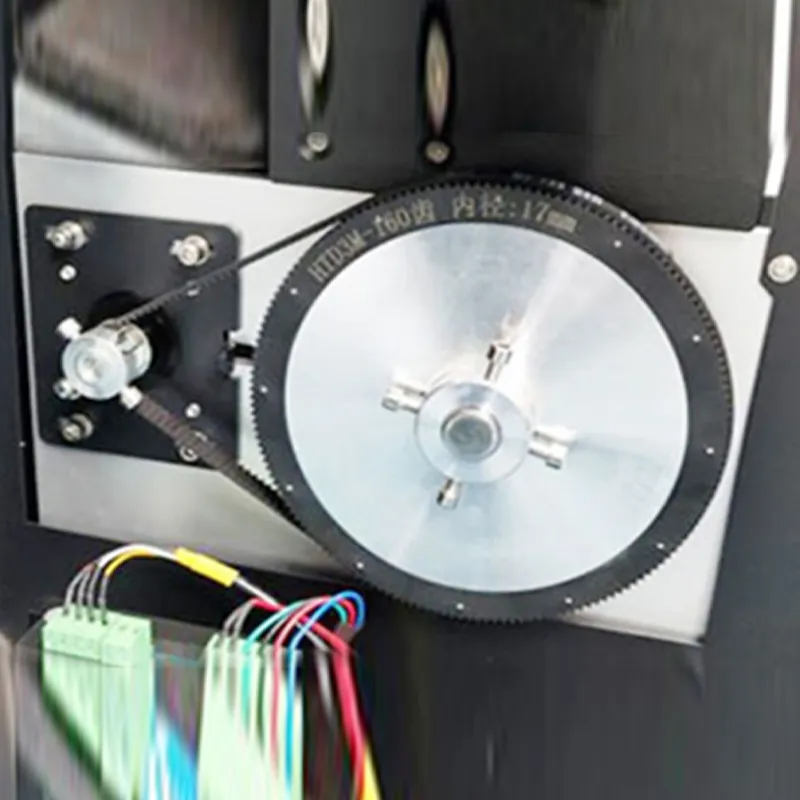

Leadshine
Motor

Accurate stepping and accurate printing.

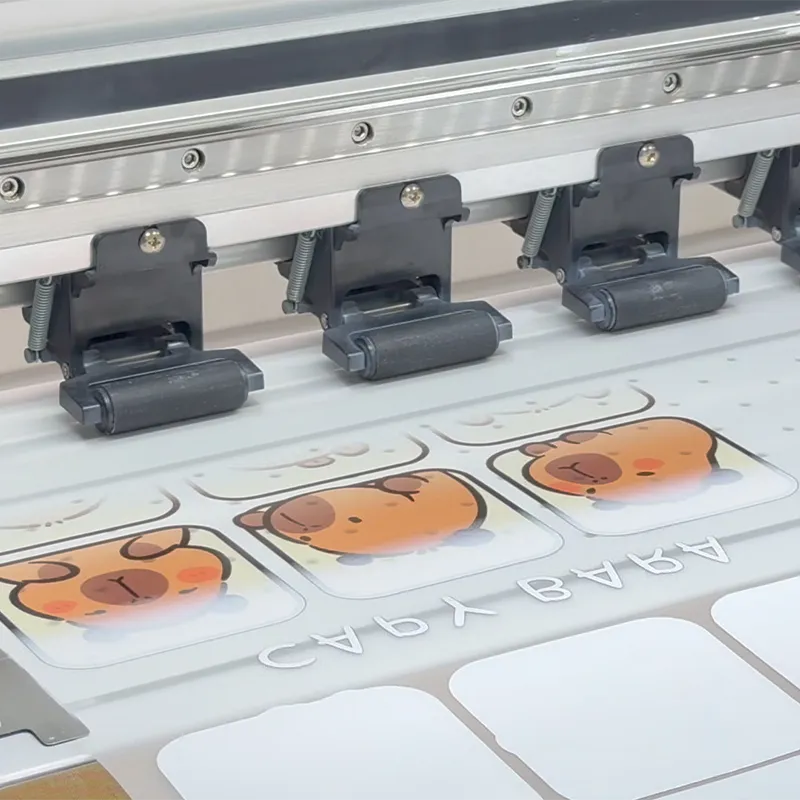

Imported rubber
Large Pressure Wheel

Stabilizing the film when printing

Aviation aluminum
Integrated Base and Beam

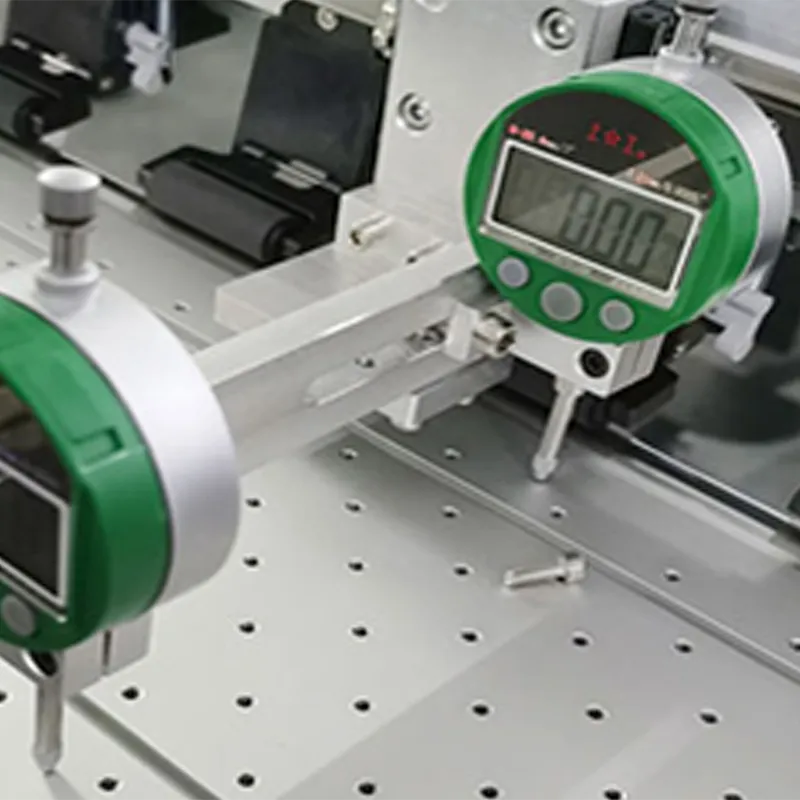

Material accuracy error is only ±0.02mm

PRINTER & SHAKER SET

Printer parameters:

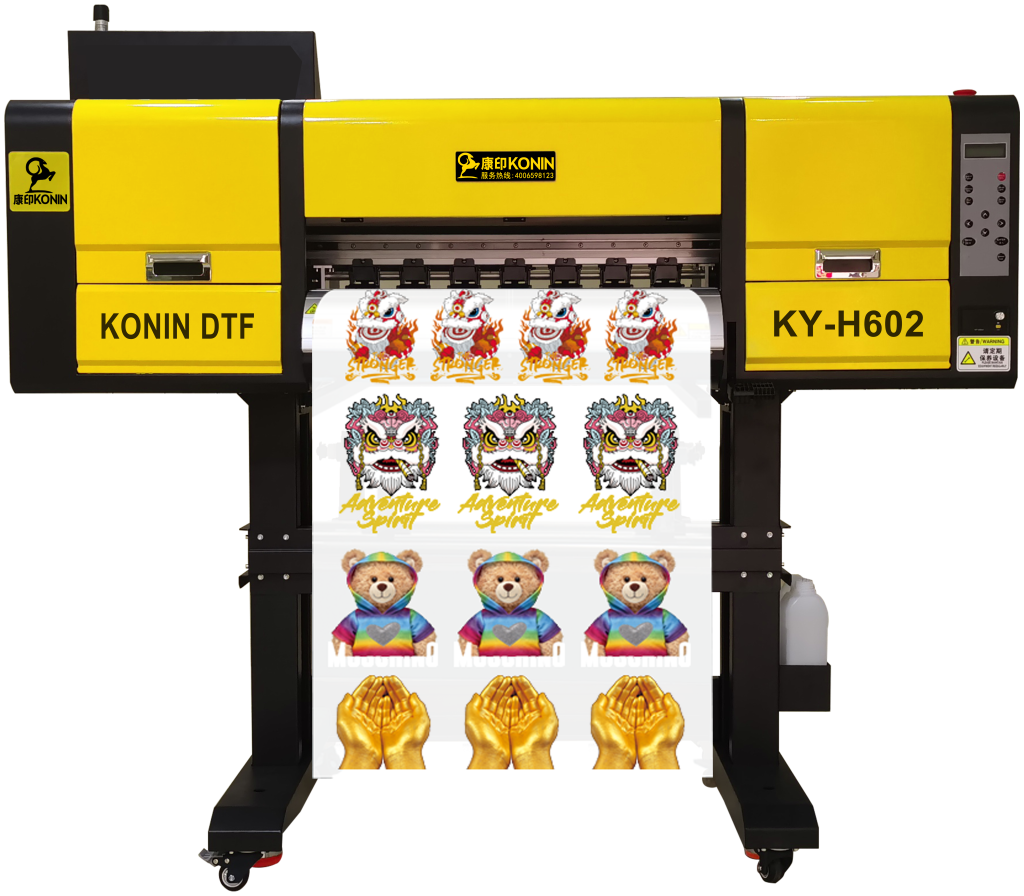

Name2 Heads DTF Printer
Equipment ModelKY-H602
Print headEpson i3200-A1 * 2pcs; Espson i1600-A1 * 2pcs
Printing Width60cm
MediaDigital PET single/double sided film
RIP SoftwareMaintop，RIIN，Photoprint（Optional）
Temperature15-35℃
Humidity40-60%
Power800W
Size of MachineL1700mm*W850mm*H1500mm
Size of PackageL1880mm*W970mm*H730mm
Net Weight190KG
Gross Weight220KG

Printer parameters:

Name4 Heads DTF Printer
Equipment ModelKY-H604
Print headEpson i3200-A1 * 4pcs; Espson i1600-A1 * 4pcs
Printing Width60cm
MediaDigital PET single/double sided film
RIP SoftwareMaintop，RIIN，Photoprint（Optional）
Temperature20-30℃
Humidity35-65%
Power800W
Size of MachineL1700mm*W850mm*H1500mm
Size of PackageL1880mm*W970mm*H730mm
Net Weight200KG
Gross Weight230KG

Printer parameters:

Name5Heads DTF Printer
Equipment ModelKY-H605
Print headEpson i3200-A1 * 5pcs; Espson i1600-A1 * 5pcs
Printing Width60cm
MediaDigital PET single/double sided film
RIP SoftwareMaintop，RIIN，Photoprint（Optional）
Temperature20-30℃
Humidity35-65%
Power800W
Size of MachineL1950mm*W850mm*H1500mm
Size of PackageL2070mm*W970mm*H730mm
Net Weight220KG
Gross Weight250KG

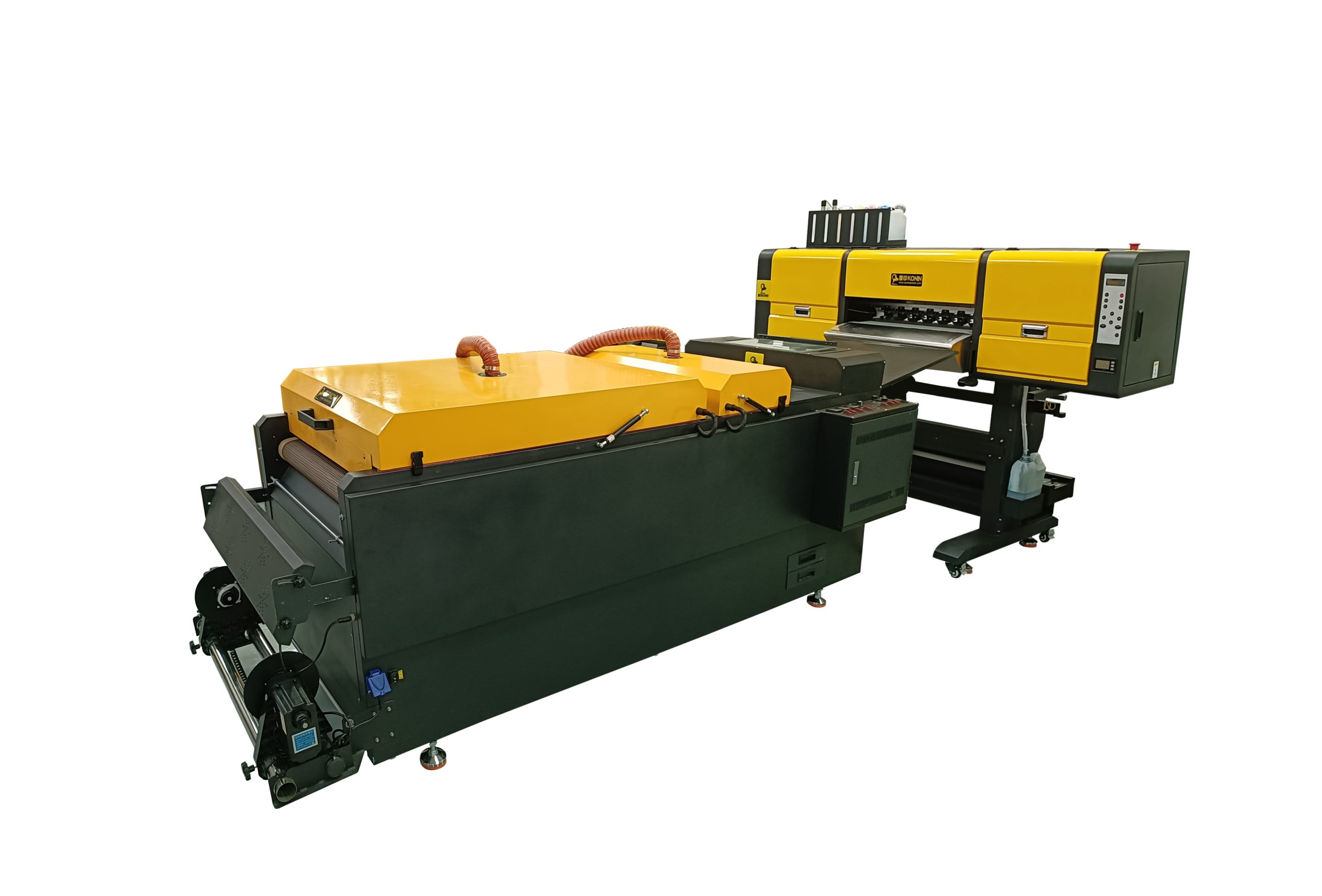

Printer parameters:

Name6Heads DTF Printer
Equipment ModelKY-H606
Print headEpson i3200-A1 * 6pcs; Espson i1600-A1 * 6pcs
Printing Width60cm
MediaDigital PET single/double sided film
RIP SoftwareMaintop，RIIN，Photoprint（Optional）
Temperature20-30℃
Humidity35-65%
Power800W
Size of MachineL1950mm*W850mm*H1500mm
Size of PackageL2070mm*W970mm*H730mm
Net Weight230KG
Gross Weight260KG

Printer parameters:

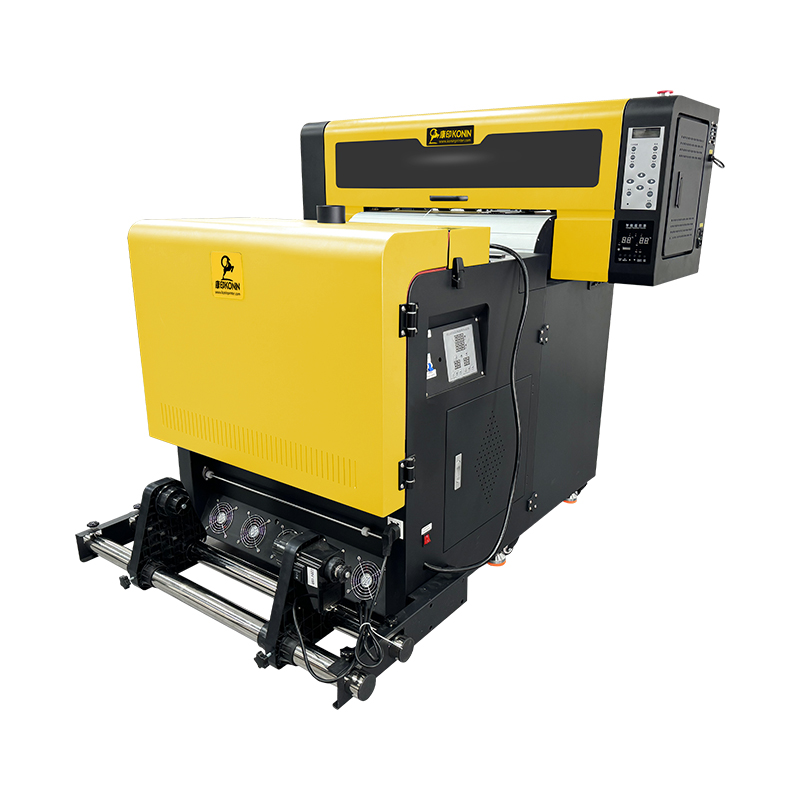

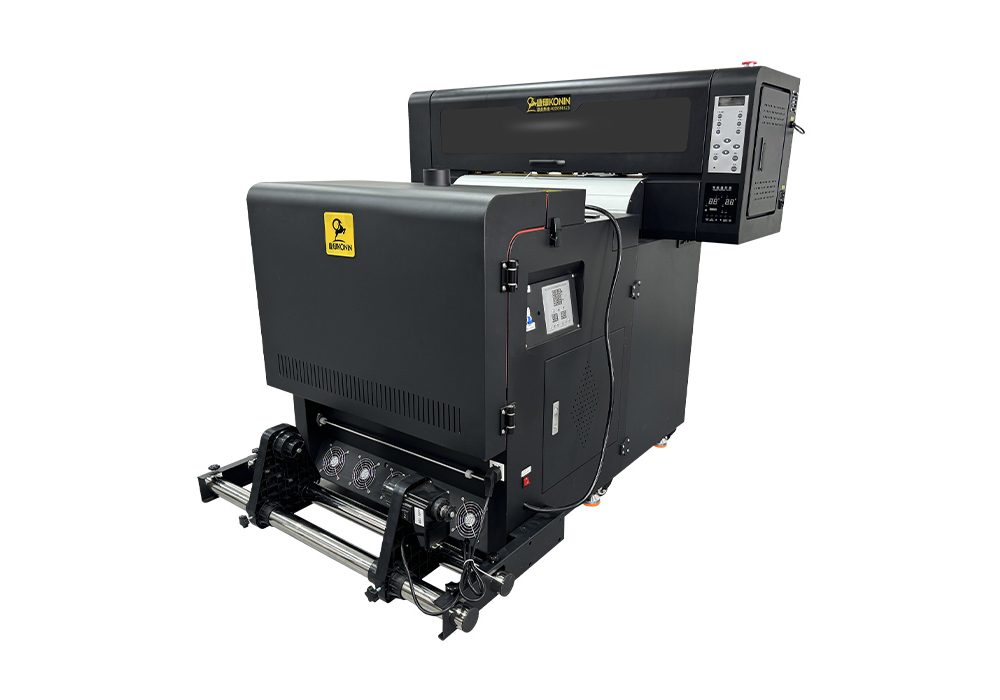

NameH602S All-in-One
Equipment ModelKY-H602S
Print headEspson i1600-A1 * 2pcs
Printing Width60cm
MediaDigital PET single/double sided film
RIP SoftwareMaintop，RIIN，Photoprint（Optional）
Temperature20-30℃
Humidity35-65%
Power500W
Size of MachineL1270mm*W510mm*H520mm
Size of PackageL1400mm*W760mm*H680mm
Net Weight70KG
Gross Weight90KG

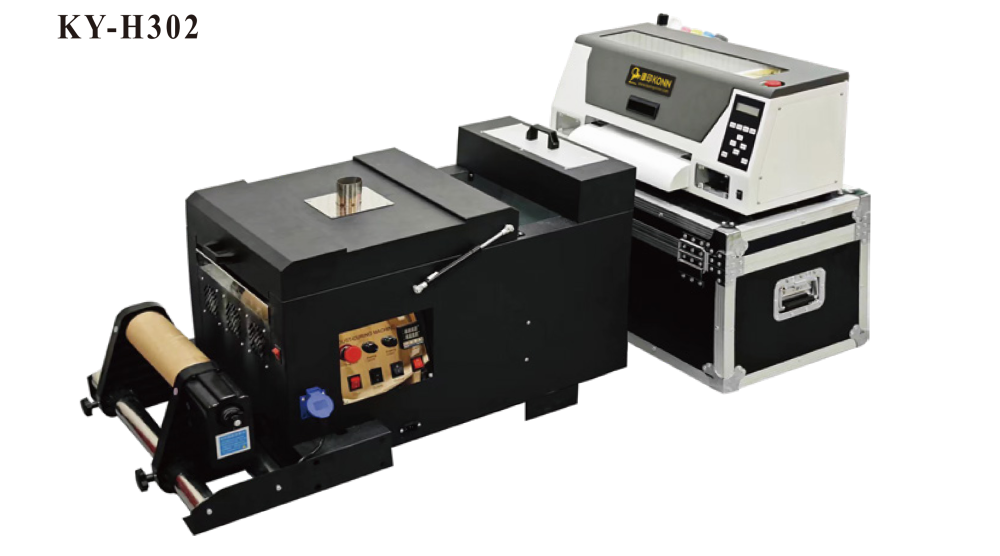

Printer parameters:

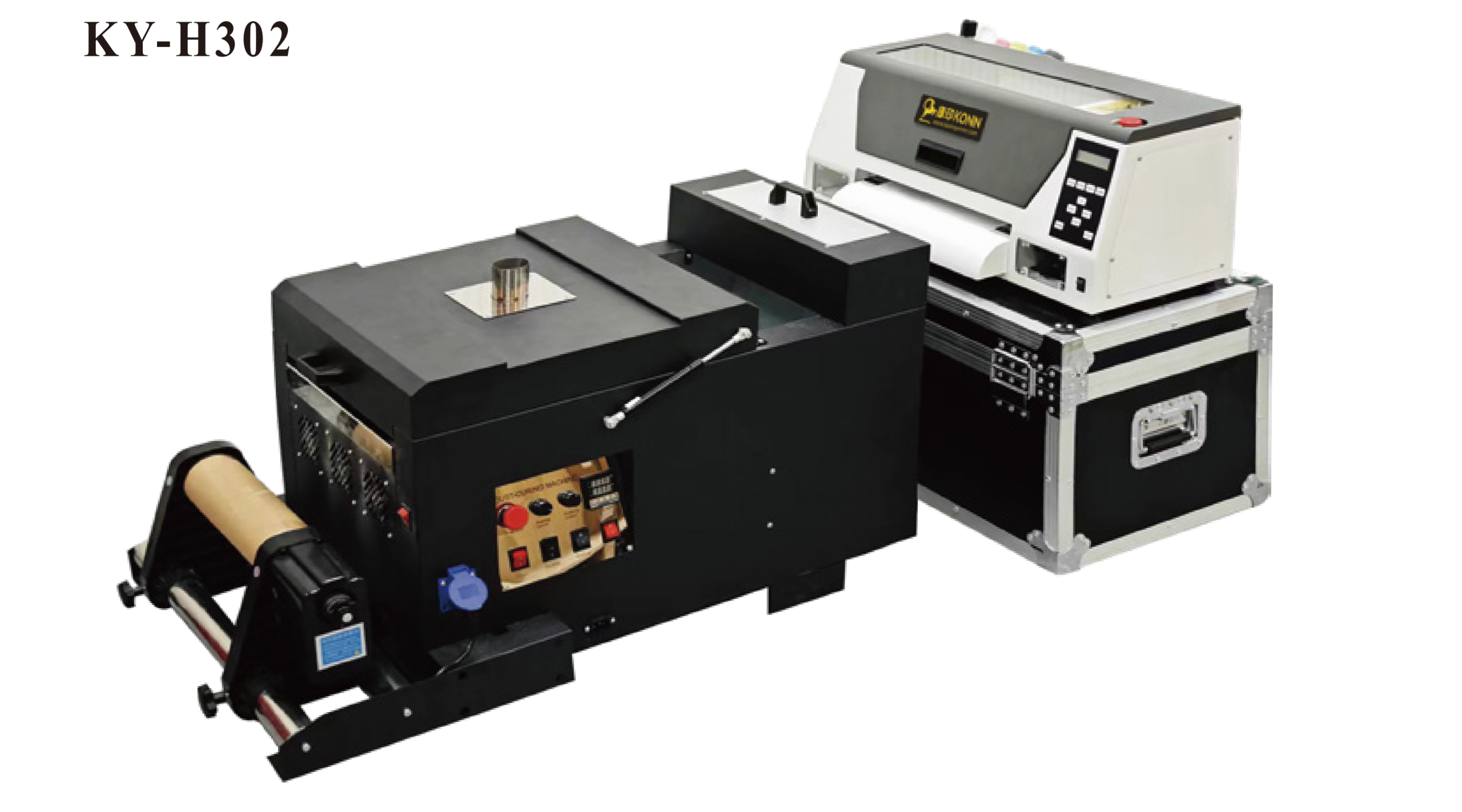

Name A3 Mini DTF printer
Equipment Model KY-H302
Print head Espson i1600-A1 * 2pcs; Espson XP600* 2pcs
Printing Width 30cm
Media Digital PET single/double sided film
RIP Software Maintop，RIIN，Photoprint（Optional）
Temperature 20-30℃
Humidity 35-65%
Power 500W
Size of Machine L750mm*W340mm*H350mm
Size of Package L800mm*W400mm*H420mm
Net Weight 34KG
Gross Weight 50KG

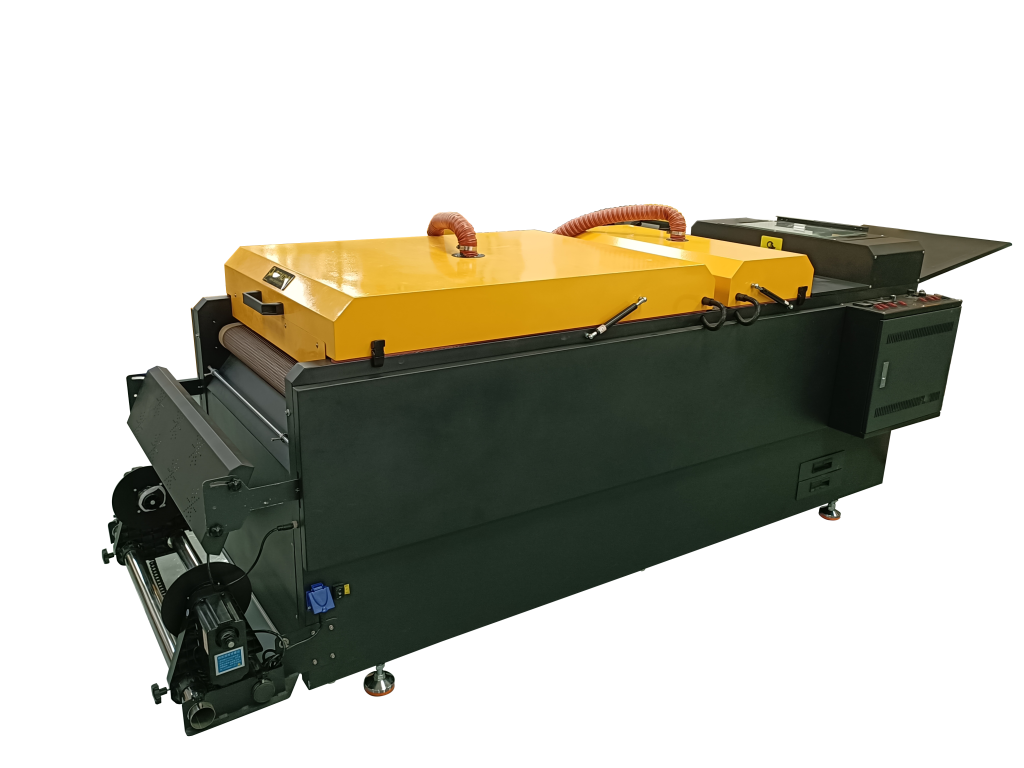

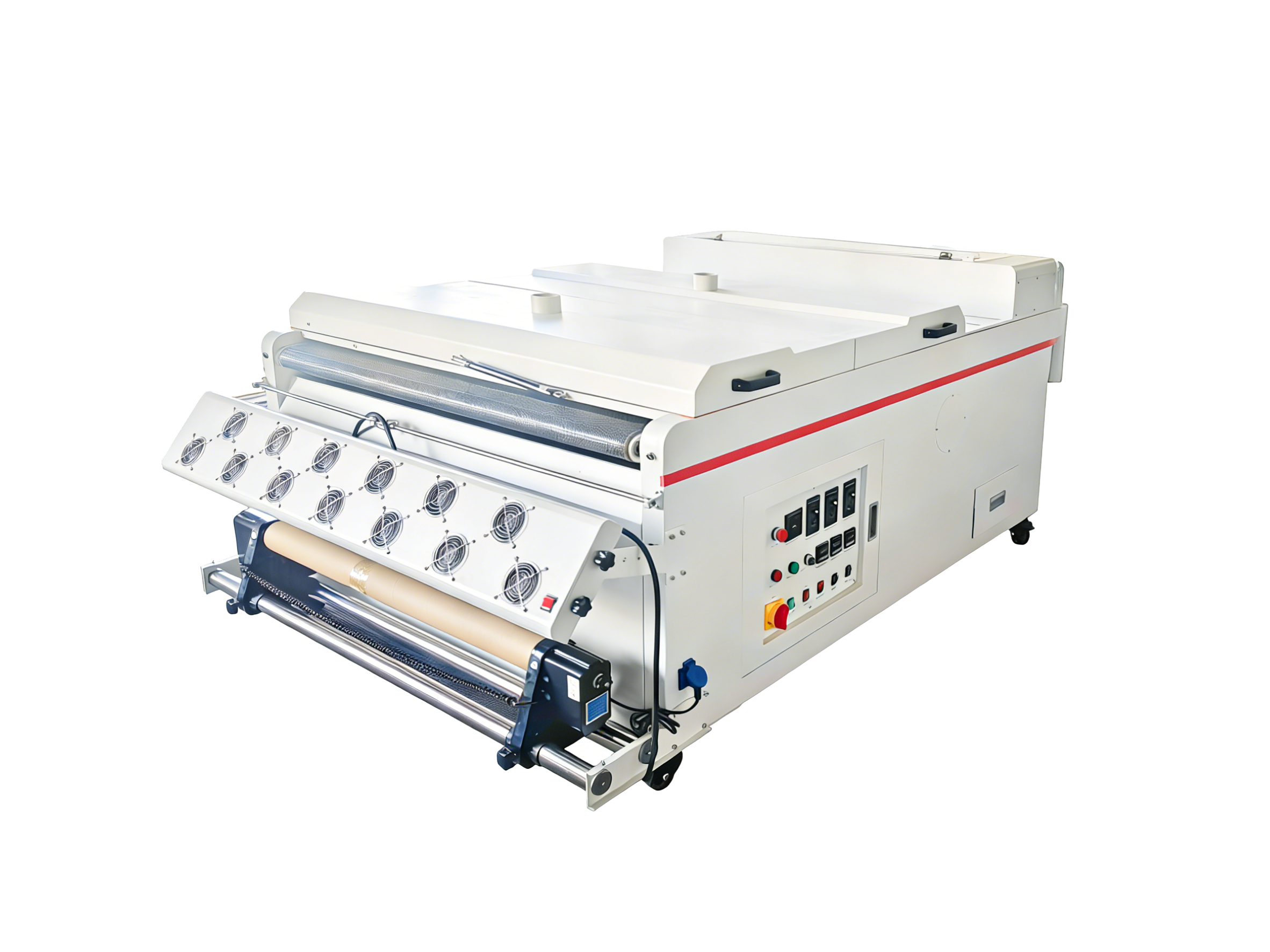

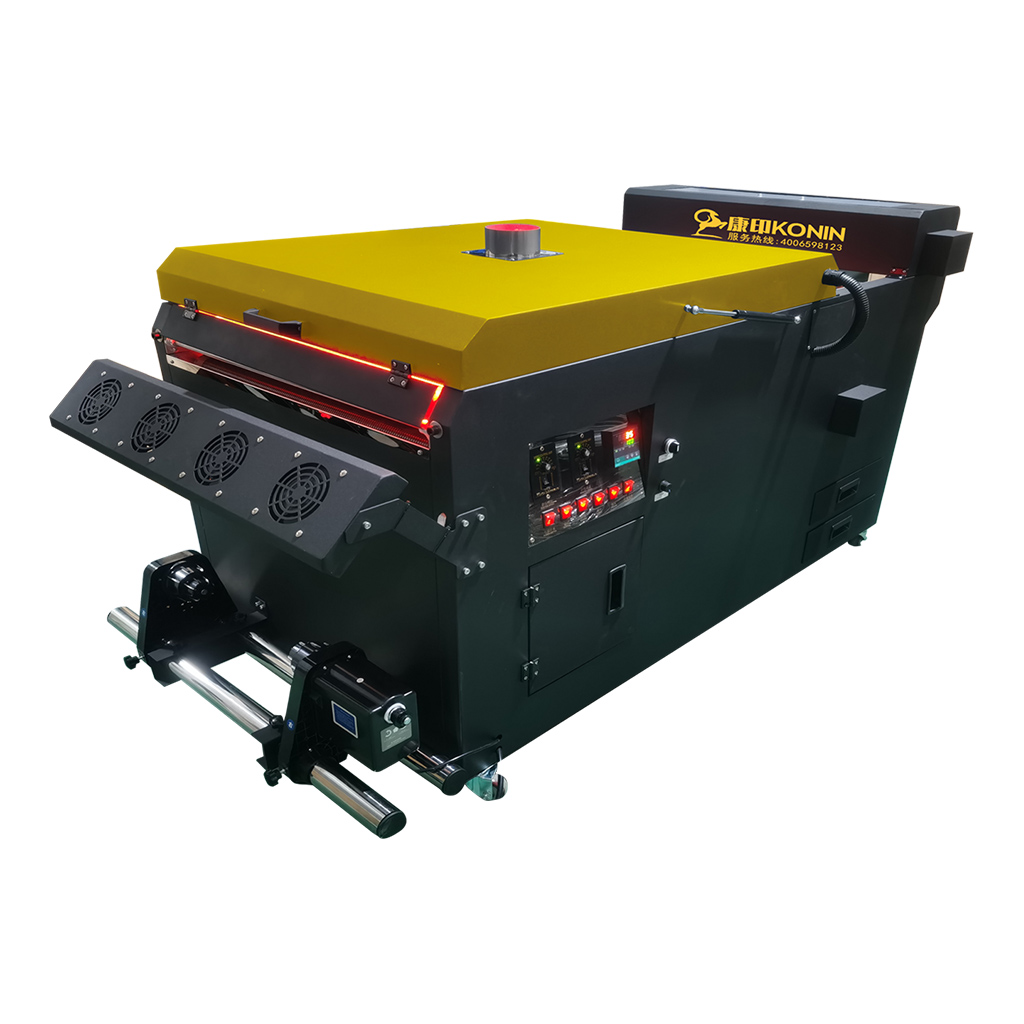

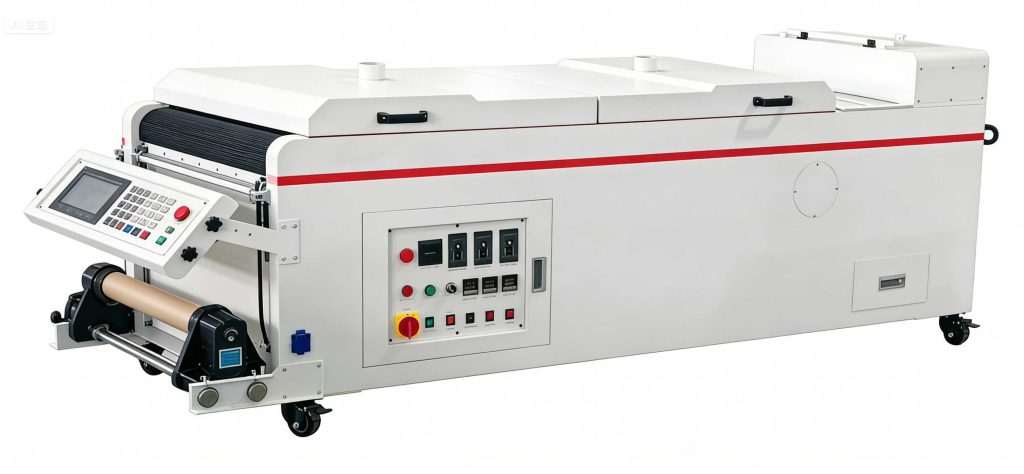

Powder Shaker parameters:

Name2 Heads DTF Powder Shaker
Equipment ModelKY-T602
Track Width0-750mm
Using MediaNylon,chenmical fiber, cotton, leather, diving suit, PVC, EVA, etc
Powder WorkAutomatically from dusting to shaking
Auto Dryer6 lights + lengthen dryer
Auto TransferBy track and roller
Roll CollectionRoll automatically
Voltage220V
Power5800W
Size of MachineL2300mm*W900mm*H1100mm
Size of PackageL1780mm*W980mm*H1140mm
Net Weight190KG
Gross Weight220KG

Powder Shaker parameters:

Name4 Heads DTF Powder Shaker
Equipment ModelKY-T604
Track Width0-750mm
Using MediaNylon,chenmical fiber, cotton, leather, diving suit, PVC, EVA, etc
Powder WorkAutomatically from dusting to shaking
Auto Dryer6 lights + lengthen dryer
Auto TransferBy track and roller
Roll CollectionRoll automatically
Voltage220V
Power5800W
Size of MachineL2590mm*W1000mm*H1080mm
Size of PackageL2760mm*W1150mm*H1130mm
Net Weight250KG
Gross Weight300KG

Powder Shaker parameters:

Name5Heads DTF Powder Shaker
Equipment ModelKY-T605
Track Width0-750mm
Using MediaNylon,chenmical fiber, cotton, leather, diving suit, PVC, EVA, etc
Powder WorkAutomatically from dusting to shaking
Auto Dryer6 lights + lengthen dryer
Auto TransferBy track and roller
Roll CollectionRoll automatically
Voltage220V
Power7200W
Size of MachineL2700mm*W1280mm*H1120mm
Size of PackageL2500mm*W1260mm*H1330mm
Net Weight270KG
Gross Weight330KG

Powder Shaker parameters:

Name8 Heads DTF Powder Shaker
Equipment ModelKY-T608
Track Width0-750mm
Using MediaNylon,chenmical fiber, cotton, leather, diving suit, PVC, EVA, etc
Powder WorkAutomatically from dusting to shaking
Auto Dryer6 lights + lengthen dryer
Auto TransferBy track and roller
Roll CollectionRoll automatically
Voltage220V
Power8000W
Size of MachineL3220mm*W1800mm*H1084mm
Size of PackageL2500mm*W1150mm*H1130mm
Net Weight300KG
Gross Weight360KG
